12.1" 1280x800 LVDS IPS TFT LCD Module 1000cd/m2
Display General Description
The Z121WX02J is a 12.1-inch color TFT LCD module boasting a resolution of 1280x800 dots and an aspect ratio of 16:9.The 12.1 inch lcd module is designed to support LVDS Interfaces, this TFT display is designed for applications requiring high-speed data transmission. LVDS interface technology is gaining popularity due to its high data transmission rates coupled with low power consumption. It offers advantages such as compatibility with lower voltage power supplies, noise reduction, enhanced noise suppression ability, and reliable signal transmission.
Utilizing IPS technology, this 12.1 inch tft display delivers wider viewing angles, with typical values of 85 degrees in all directions (left, right, up, and down). It features a contrast ratio of 1200:1 (typical value) and a brightness of 1000 nits (typical value).
The power supply voltage for the LCD module ranges from 3.0 V to 3.6 V, with a typical value of 3.3 V. Operating temperatures span from -20 °C to +70 °C, while the storage temperature range extends from -30 °C to +80 °C.
This 12.1-inch color TFT LCD display is highly suitable for various applications, including medical equipment, fish finders, industrial monitoring devices, home security systems, and more.
General Data
| Product Name | 12.1 inch LVDS LCD Module |
| Resolution | 1280X800 |
| Model Size (W*H*T) | |
| Display Area (W*H) | |
| Interface | LVDS |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS/ALL |
| Brightness | 1000 cd/m2 |
| Pin number | 30 |
| Viewing Angle | 85/85/85/85 |
| BACKLIGHT TYPE | 48 WHITE LED |
| Operating temperatures | -20 to 80 degree |
| Storage temperatures | -30 to 80 degree |

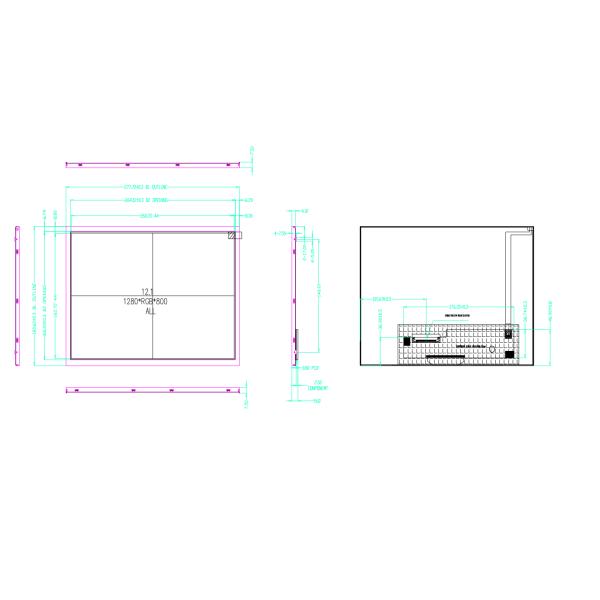

Drawing
Product Details
TFT Applications
This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.
